High accuracy automatic screw feeding 14 head fresh food multihead weigher for weighing meat

Application

14 heads screw feeding weigher is suitable for weighing the sticky material, such as chicken, pork,duck, fish, beef and so on.

14 heads screw feeding weigher

Features

1. Special load cell with high precision and high standard.

2. With intelligent multiple sampling stable mode, make weighing higher accurate.

3. Intelligent fault alarm, convenient maintenance.

4. High speed staggered discharging function, effectively prevent blocking materials.

5. With high integrated modular design and CAN bus technology.

6. Modbus industry standard communication protocol, realize the interface combination of multihead weigher and packaging machine.


Mechanical character

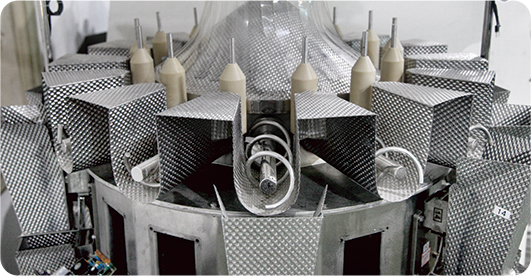

1. Screw feeding to replace the traditional vibrator feeding, it's more suitable for sticky material.

2. Drying device for optional, effectively prevent the electrical components from damage because of humidity.

3. Uniform design standards contribute to better interchangeability for spare parts.

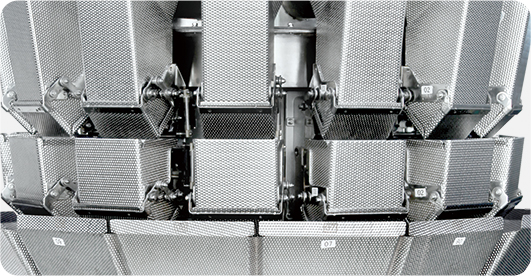

4. Stable actuator shell structure makes the hopper running more stable and reading higher accuracy. The integral machine case and the seat enhance the strength of the machine, makes the hopper shorter stable time.

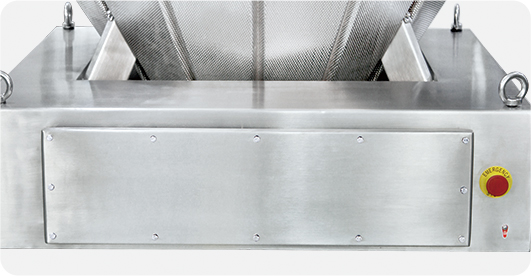

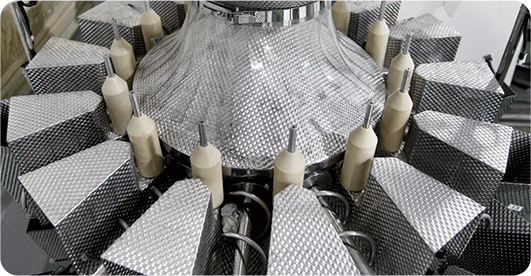

5. IP65 waterproof machine case, material contact part with dimple plate, 60° discharge chute let the material fall smoothly.


Technical specification

ModelJW-A14
Identify CodeA14-2-3D
Weighing Range10-1500g
AccuracyX(0.5)
Max Speed50P/M
Hopper Volume2.5L
Control Panel10.1”Touch Screen
OptionsTiming Hopper/Printer/Reject Device
Driving SystemStep Motor
Power Requirement220V/1500W/50/60Hz/10A

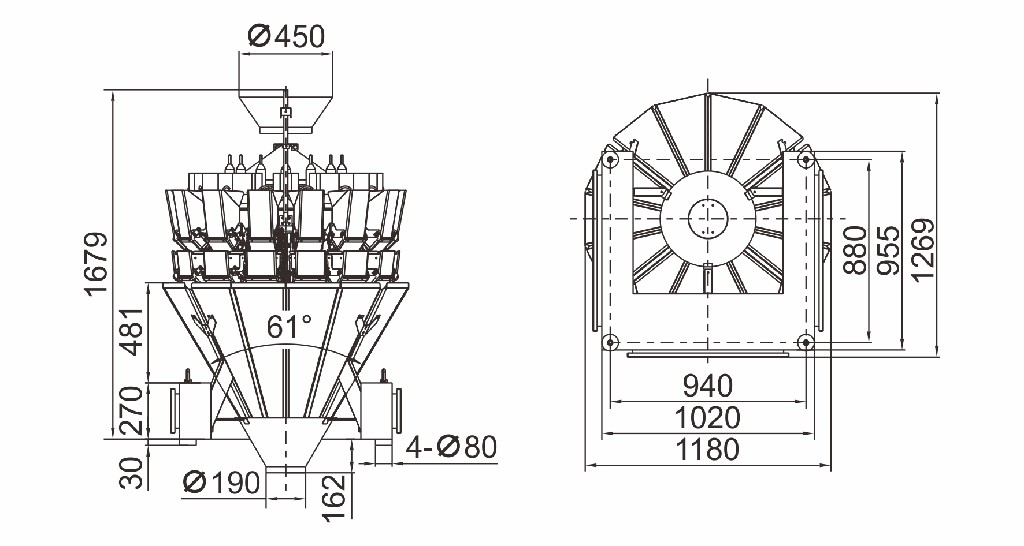

Packing Dimension(mm)1750(L)x1130(w)x1450(H)
Gross Weight500kg


Product Details
