2nd G Single head belt weigher is suitable for brown sugar, industrial salt and other materials with slight viscosity, as well as fresh corn kernels, cauliflower,onion slices and other block, diced, stem and other vegetable products.
1. Grand new modular control system.
2. Parameter can be freely adjusted according to production.
3. Adopt the stepless feeding mode to control the flow of materials in real time to ensure accurate weighing.
1. The whole machine is made of stainless steel food grade materials to ensure food hygiene and safety.
2. Custom food grade conveyor belts to meet different application needs of different materials.
3. Easy-to-remove structure for easy maintenance and cleaning.
4. Customized special load cell to improve weighing accuracy.

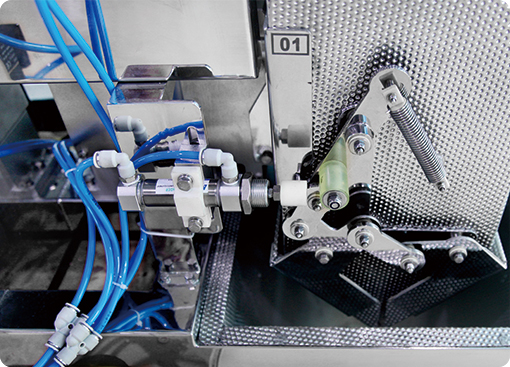

5. Equipped with independent gates, automatically realize the opening and closing of the gate according to the signal feedback.
6. Material contact parts can be quickly disassembled.
| Model | JW-AX1 |
| Identify Code | XM1-2-2 |
| Weighing Range | 500-12000g |
| Accuracy | X(1) |
| Max Speed | 8P/M |
| Hopper Volume | 15L |
| Parameters Press No. | 100 |
| Max Products Mixed | 1 |
| Control Panel | 7”Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Reject Device |
| Power Requirement | 220V/250W/50/60Hz/1.2A |

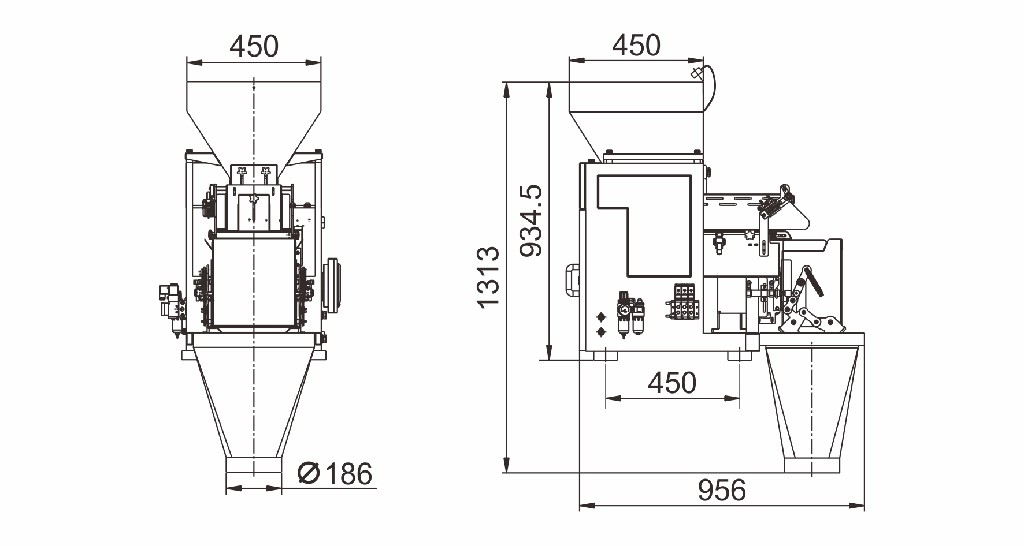

| Packing Dimension(mm) | 1150(L)x700(W)x1090(H) |
| Gross Weight | 200kg |
