Combined Weighing and Packaging Machine is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardwares, meatballs etc.
Bag type: Pillow bag, Gusset bag, Side seal bag.
Film type: A variety of laminated films, single-layer PE film, film.
Thickness range: 0.04mm~0.15mm.
1. High-precision and high resolution loadcell.
2. 1.6L hoppers can be widely used for a variety of common standard materials and standard weights.
3. Combined multihead weigher and vertical packaging machine, fully automatic weighing, filling, date printing, packaging and outputting.
4. Automatic fault alarm system ensures safe and reliable operation.
5. Integrated control panel, man-machine interface touch screen, easy operation and maintenance.
6. Equipped with servo motor & film pulling system and optical tracking devices to ensure accurate bag length and color positioning.
7. Horizontal sealing by servo motor with high speed and high efficiency.
8. Cheap, economical, cost-effective and with low maintenance costs.
9. Low height, small sizes for a variety of standard workshop and small places.
| Model | JW-MC461016 | JW-HC461416 |
| Identify Code | JW-MC461016-1 | JW-HC461416-1 |
| Heads No. | 10 | 14 |
| Weighing Range | 10-1000g | 10-1500g |
| Accuracy | X(0.5) | X(0.5) |
| Max speed | 65P/M | 100P/M |
| Hopper Volume | 1600ml | 1600ml |
| Film width(mm)(mm) | 160-460 | 160-460 |
| Bag size(mm) | 60-300(L)x70-220(W) | 60-300(L)x70-220(W) |
| Packing speed | 65 Bags/Min | 100 Bags/Min |
| Film Pulling Driven By | Servo Motor | Servo Motor |
| Horizonal Sealing Driven By | Air Cylinder | Servo Motor |
| Powder Requirement | 220V/4.6KW/50/60HZ | 220V/5.6KW/50/60HZ |
| Gas Consumption | 0.6m3/min | 0.2m3/min |

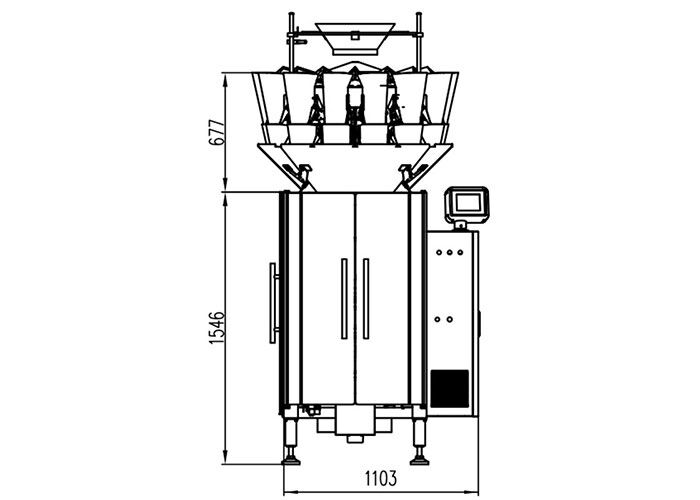

| Packing dimension(mm) | 1645(L)X1140(W)X2509(H) | 1800(L)X1140(W)X2659(H) |
| Gross weight | 750Kg | 800Kg |
